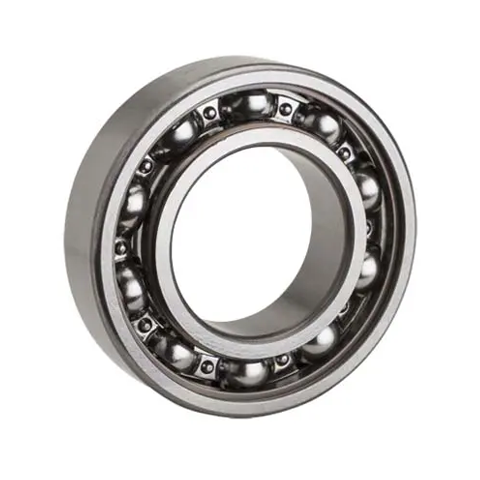

NTN Deep Groove Ball Bearings 6024, D=120

SKU: NTN 6024

$101.36

Shipping calculated at checkout

Available Now!

NTN Deep Groove Ball Bearings 6024, D=120

Radial/Deep Groove Ball Bearing - Round Bore, 120 mm ID, 180 mm OD, 28 mm Width, Open, CN Internal Clearance


SPECIFICATIONS


Bore Type Round
Bore Diameter 120.000 mm, 4.7244 in
Outside Diameter 180.000 mm, 7.0866 in
Overall Width 28.000 mm, 1.1024 in
Closure Type Open
Row Type & Fill Slot Single Row Non-Fill Slot
Snap Ring Included Without Snap Ring
Internal Clearance CN
Operating Temperature Range -40 to 250 ºF
Cage Type Pressed
Dynamic Load Capacity 21130 lbf
Static Load Capacity 17870 lbf
Precision Rating Class 0
Seal Type None
Finish/Coating Uncoated
Bearing Material High Carbon Chrome Steel
Cage Material Steel
Inner Ring Width 28.000 mm, 1.1024 in
Outer Ring Width 1.1024 in; 28.000 mm
Maximum RPM (Grease) 3500 RPM
Maximum RPM (Oil) 4100 rpm
Fillet Radius 2.000 mm, 0.0787 in
Maximum RPM 4100 RPM
Series 60
Manufacturer UPC Number 4547359337587
Weight 4.67 lbs
Harmonization Code 8482.10.5056









1. Design features and characteristics

Deep groove ball bearings are very widely used. A deep groove is formed on the inner and outer ring of the bearing enabling the bearing to sustain radial and axial loads in either direction as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications. When two or more deep groove ball bearings are used in combination and mounted adjacent to each other a duplex set (D2) should be used. Duplex bearings (D2) utilize controlled tolerances to more evenly distribute the loading between the individual bearing rows which improves the overall performance of the assembly. In addition to unsealed and unlubricated “open” bearings, NTN provides deep groove ball bearings that are pre-lubricated with grease and enclosed by seals or shields. See section “11. Lubrication” for a list of some of the greases which can be used. Table 1 shows the construction and special characteristics of various sealed deep groove ball bearings.



Types and codes N Shielded type Shielded type
Non-contact type ZZ Non-contact type LLB Contact type LLU Low torque type LLH
Construction
Metal shield plate is affixed to the outside ring; the inner ring incorporates a V-groove and labyrinth clearance. The outer ring incorporates synthetic rubber molded to a steel plate; seal edge is aligned with V-groove along inner ring surface with labyrinth clearance The outer ring incorporates synthetic rubber molded to a steel plate; seal edge contacts V-groove along inner ring surface Basic construction is the same as LLU type, but a specially designed lip on the edge of the seal prevents foreign matter penetration; low torque construction.
Torque Small Small Higher Medium
Dust proofing Good Better than ZZ-type Excellent Much better than LLB-type
Water proofing Poor Poor Very good Good
High speed capacity Same as open type Same as open type Limited by contact seals Much better than LLU-type
Allowable temp. range Depends on lubricant −25 to 120°C −25 to 110°C −25 to 120°C
